Changes

Page history
added wingheadshark authored by Villerius's avatar Villerius
Show whitespace changes
Inline Side-by-side
Graphical.md
View page @ 1021ea1b
......@@ -6,6 +6,11 @@
* This rivershark has xubuntu desktop installed and can be reach with RDP and SSH protocol.
* RDP now supports continue sessions and copy and paste.
* A new blade server has been setup for use as a graphical login/submit node.
* Hostname : wingheadshark
* IP address : 145.88.66.103
----
## Remote Desktop Protocol (RDP) Howto
......@@ -17,7 +22,7 @@ Please use a different source port like: 1234
#### Windows
* Open your Remote Desktop Connection Client
* fill in for computer name : 145.88.65.200
* fill in for computer name : 145.88.66.103 or 145.88.65.200
* Use your {researchlumc username} and password to login.
![Image](https://git.lumc.nl/shark/SHARK/wikis/Screenshot%20from%202015-10-20%2010%3A39%3A47.png)
......@@ -29,7 +34,7 @@ Please use a different source port like: 1234
#### Mac OSX
* Use [RDC](http://www.microsoft.com/en-ca/download/details.aspx?id=18140) (Remote Desktop Connection Client for Mac 2)
* fill in for computer name : 145.88.65.200
* fill in for computer name : 145.88.66.103 or 145.88.65.200
![Image](https://git.lumc.nl/shark/SHARK/wikis/macRemoteDesktopClient.jpg)
......@@ -50,7 +55,7 @@ Please use a different source port like: 1234
* Use your {researchlumc username} and password to login.
* Command line version.
rdesktop -g 1920x1130 -u research-USERNAME -d researchlumc 145.88.65.200
rdesktop -g 1920x1130 -u research-USERNAME -d researchlumc 145.88.66.103
....................................... ^
use here your own username !!!
......@@ -82,7 +87,7 @@ Please use a different source port like: 1234

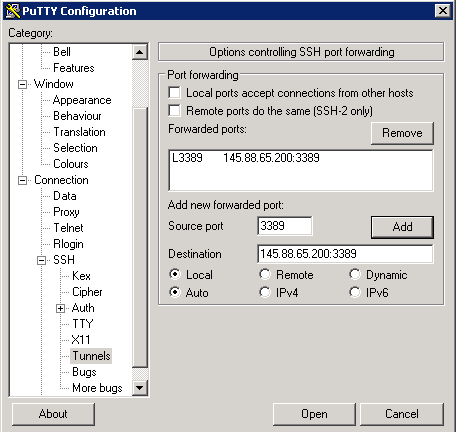

* Next on the left side choose Category SSH, Tunnels
* fill in like picture
* Source port : 3389
* Destination : 145.88.65.200:3389
* Destination : 145.88.66.103:3389
* press Add
![Image](https://git.lumc.nl/shark/SHARK/wikis/sshRDPtunnel2.png)
......@@ -113,7 +118,7 @@ Please use a different source port like: 1234
* cd to a Directory where putty is installed
* use this command:
putty -L 3389:145.88.65.200:3389 {researchlumc-USERNAME}@145.88.35.10
putty -L 3389:145.88.66.103:3389 {researchlumc-USERNAME}@145.88.35.10
.......................................................^
use here your own username !!!
......@@ -130,7 +135,7 @@ Please use a different source port like: 1234
![Image](https://git.lumc.nl/shark/SHARK/wikis/mobaxterm-localSSH.png)
* in the terminal type the following command:
ssh {researchlumc-USERNAME}@145.88.35.10 -L 3389:145.88.65.200:3389
ssh {researchlumc-USERNAME}@145.88.35.10 -L 3389:145.88.66.103:3389
.......................................^
use here your own username !!!
......@@ -145,7 +150,7 @@ Please use a different source port like: 1234
#### Mac
* open your terminal and type in :
ssh -L 3389:145.88.65.200:3389 145.88.35.10 -l researchlumc-USERNAME -N
ssh -L 3389:145.88.66.103:3389 145.88.35.10 -l researchlumc-USERNAME -N
....................................................................^
use here your own username !!!
......
......
